HIDE Installation Made Easy
✔ FROM THE APP to Activation
5 EASY INSTALLATION steps

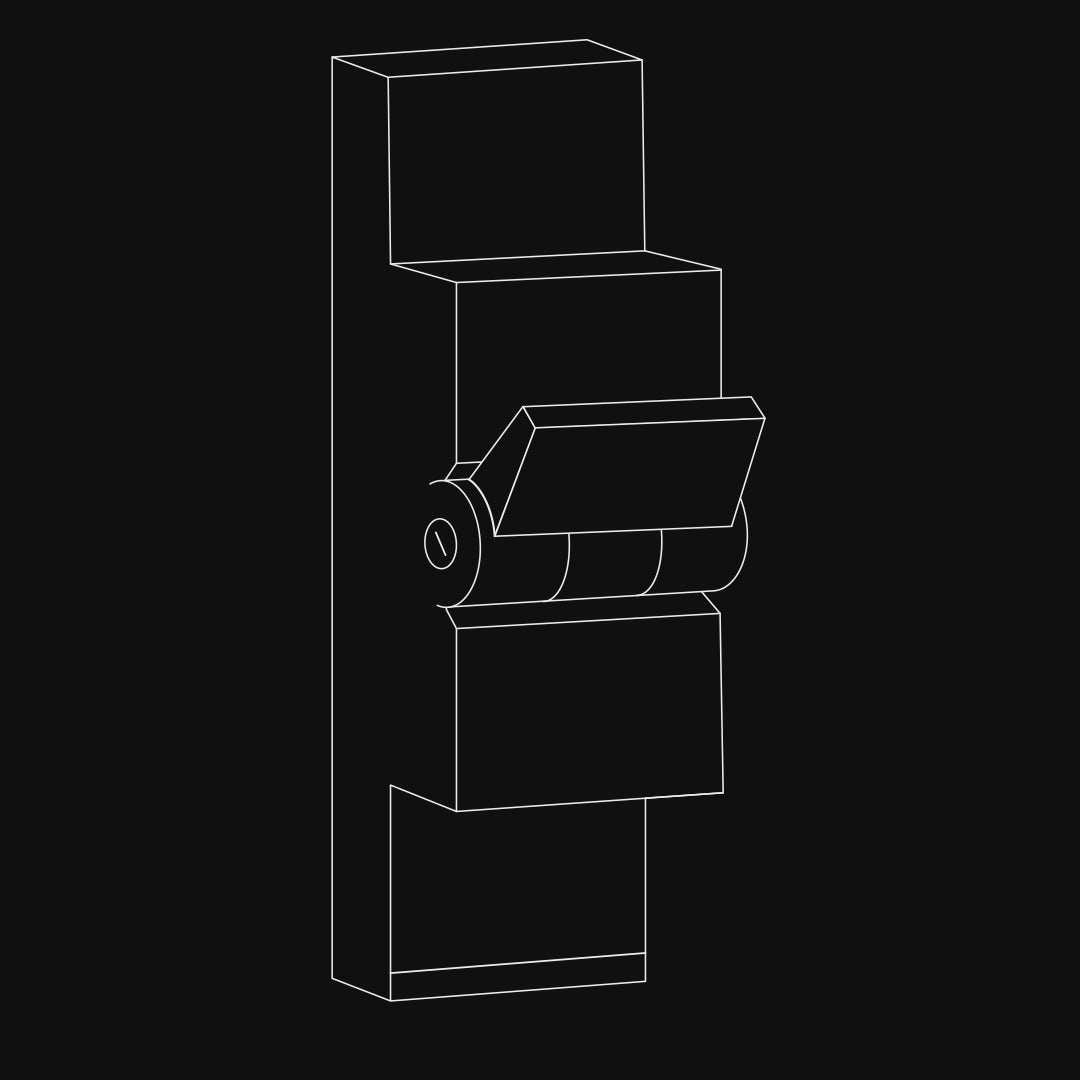

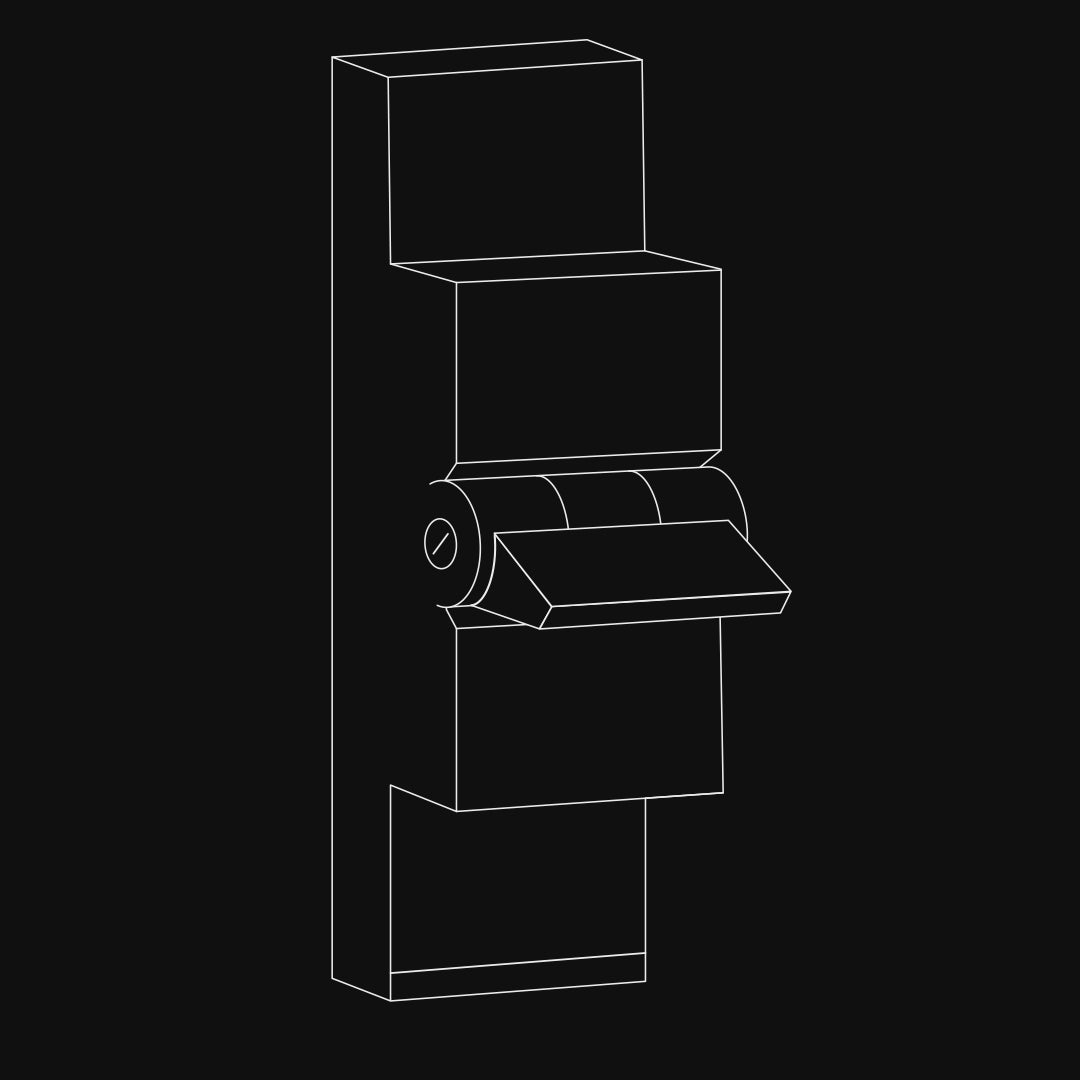

TURN OFF POWER
Make sure the fuse is turned off during installation.
STEP 1
TURN OFF POWER
Make sure the fuse is turned off during installation.

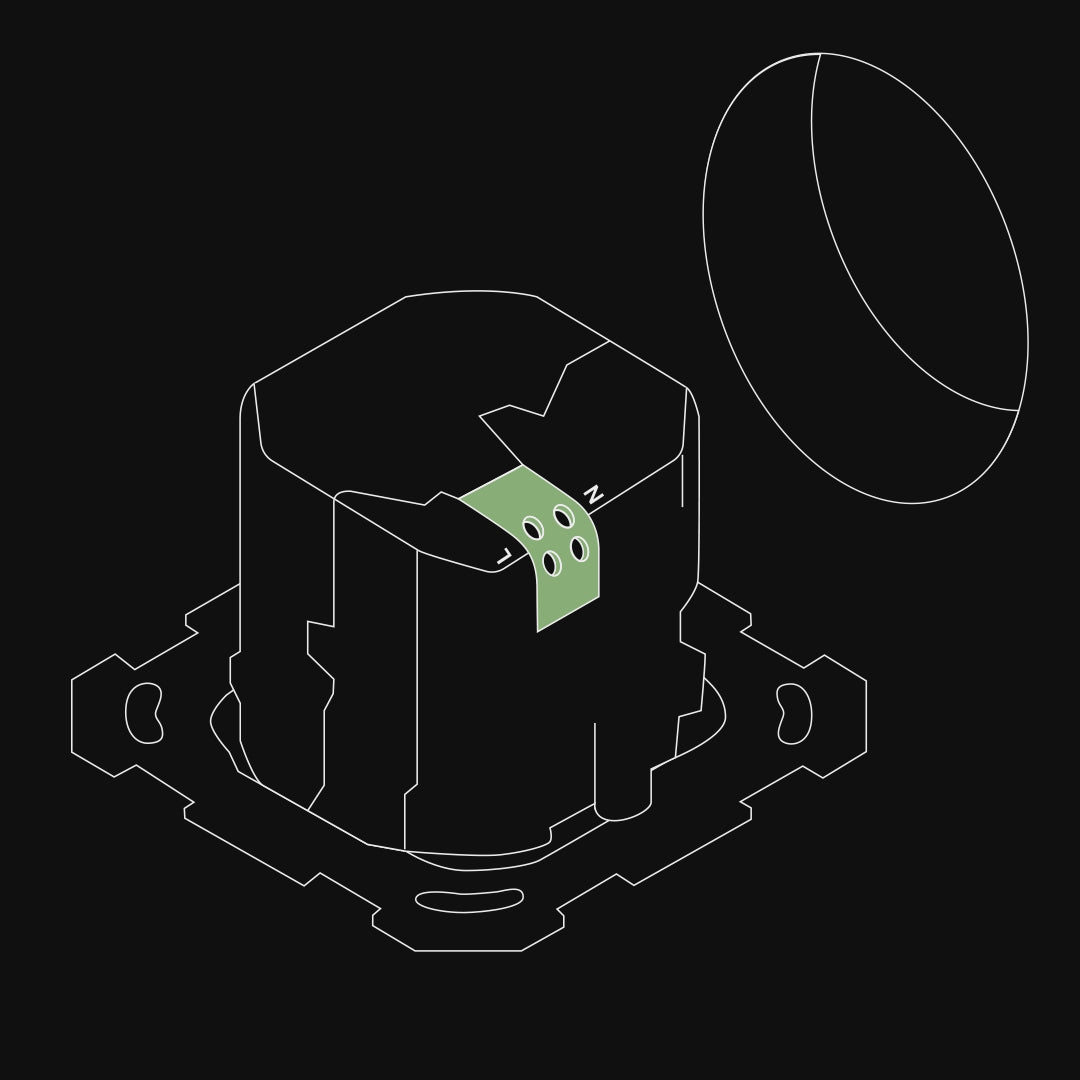

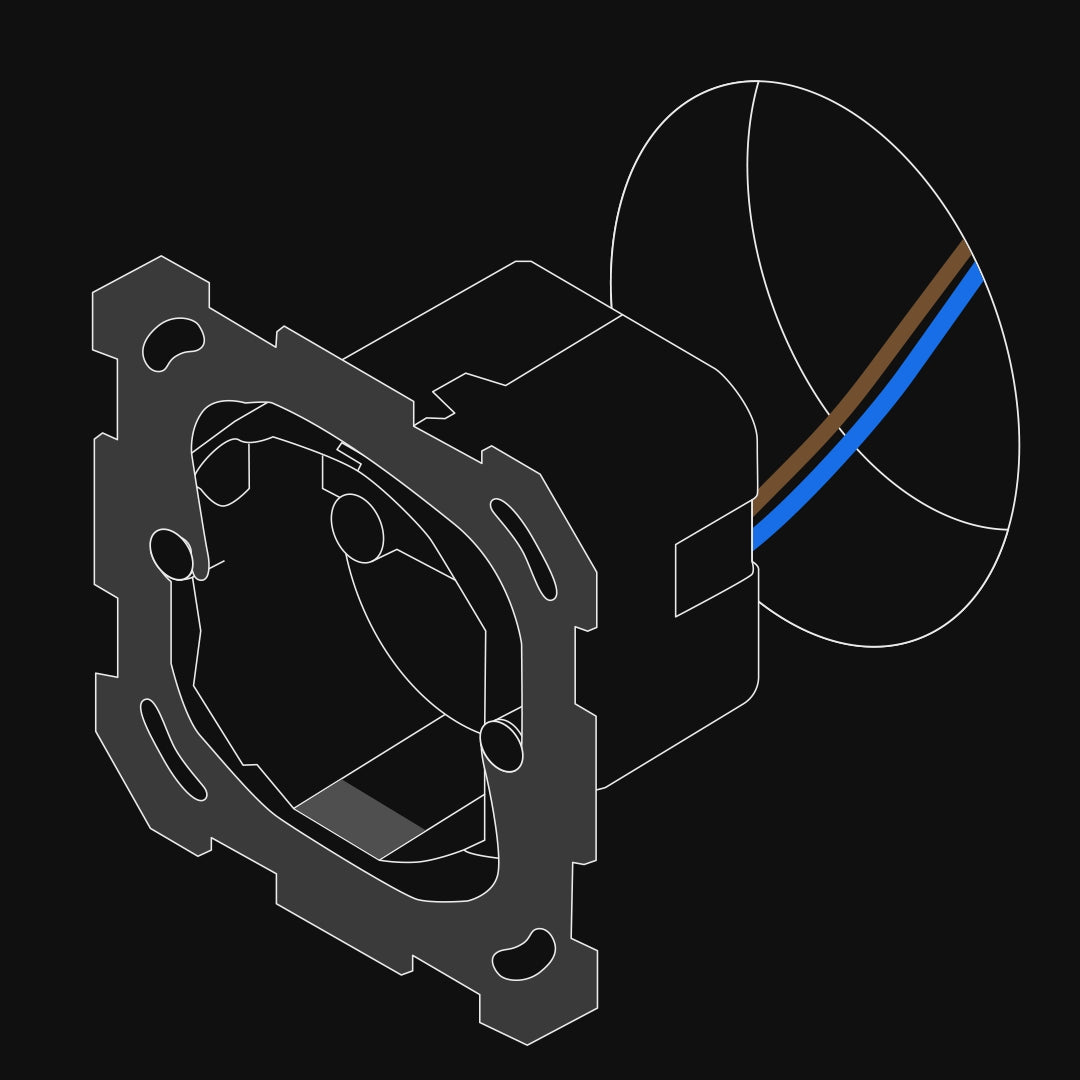

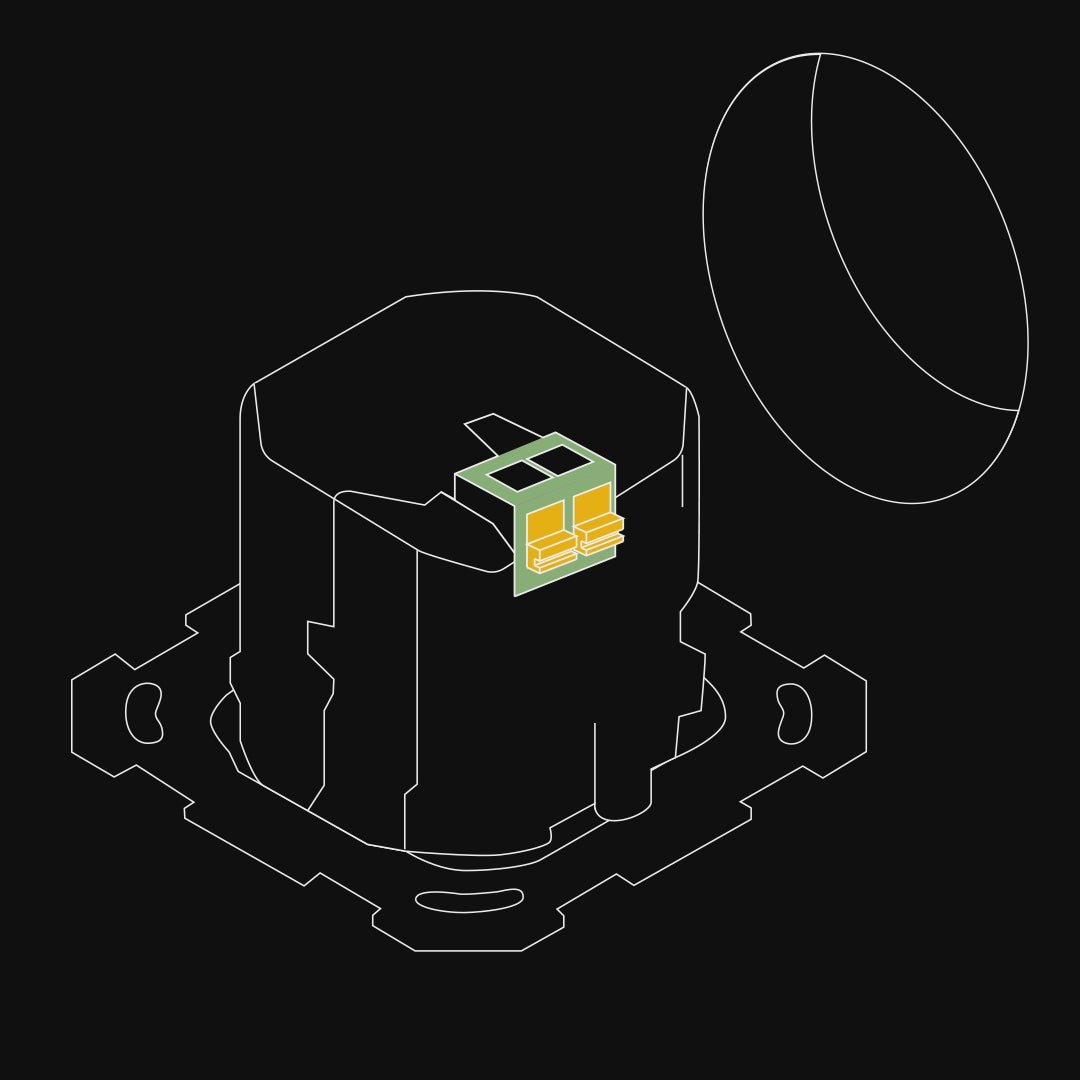

Connection cable
Connect the blue and brown power cables to the Smart Diffuser.
Step 2
Connection cable
Connect the blue and brown power cables to the Smart Diffuser.

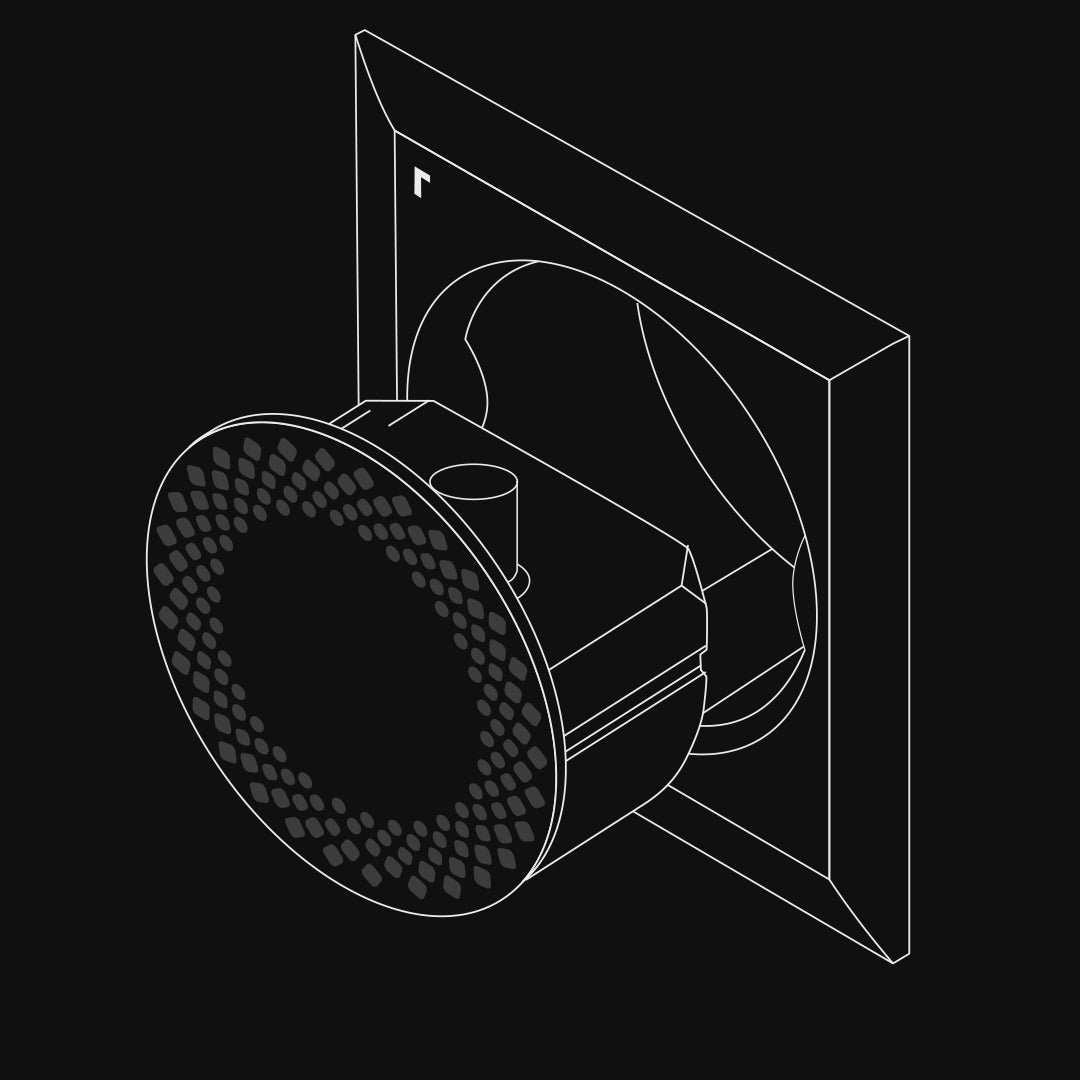

Assembly of the frame
- Attach the diffuser onto the metal installation frame: Ensure the correct installation orientation.
- Fix the Smart Diffuser in place: Secure it to the wall with screws.
- Attach the switch frame and revoltab inner frame: Slide the inner frame into the outer frame and ensure that the “r” signifier is positioned at the top left, then click the Smart Diffuser into place.
- (Do not insert the fragrance tab yet.)
Step 3
Assembly of the frame
- Attach the diffuser onto the metal installation frame: Ensure the correct installation orientation.
- Fix the Smart Diffuser in place: Secure it to the wall with screws.
- Attach the switch frame and revoltab inner frame: Slide the inner frame into the outer frame and ensure that the “r” signifier is positioned at the top left, then click the Smart Diffuser into place.
- (Do not insert the fragrance tab yet.)
Assembly of the frame
- Turn on the power – the LED will start blinking.
- Open the app and add the device placement.
- Scan the QR code on the diffuser and follow the instructions in the app.
- Connect to Wi-Fi – the LED will blink green.
Step 4
Assembly of the frame
- Turn on the power – the LED will start blinking.
- Open the app and add the device placement.
- Scan the QR code on the diffuser and follow the instructions in the app.
- Connect to Wi-Fi – the LED will blink green.
Insert tab
- Unscrew the tab lid.
- Insert tab in device
- Start the app and scan the QR code: Follow the instructions in the app.
Step 5
Insert tab
- Unscrew the tab lid.
- Insert tab in device
- Start the app and scan the QR code: Follow the instructions in the app.
WHERE DO I INSTALL THE HIDE SMART DIFFUSER?
Ideally, place the HIDE Smart Diffuser where people enter the room.
Not possible? No problem, distribution takes place from anywhere in the room. Still unclear? We're happy to advise you.

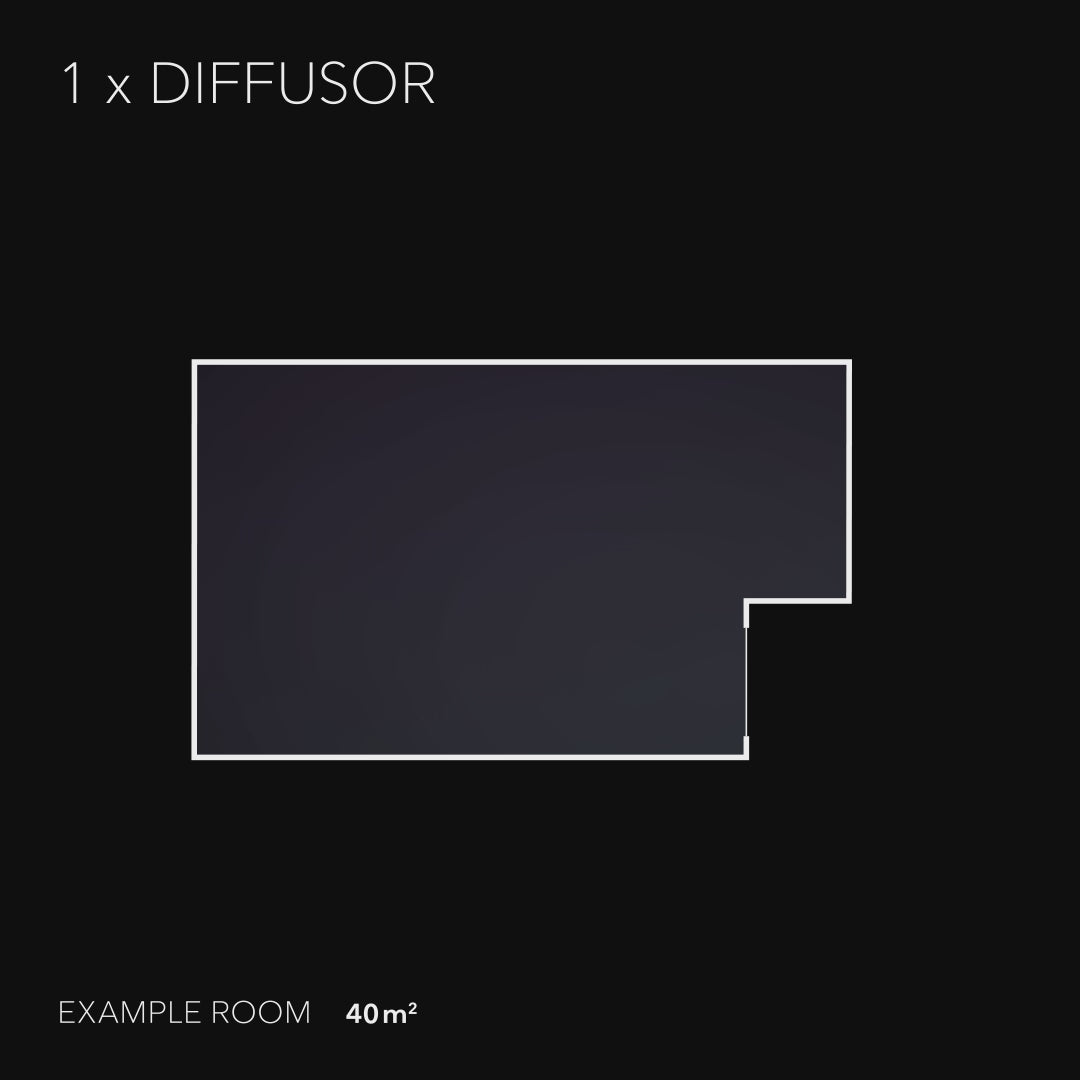

HOW FAR CAN A SMART DIFFUSER REACH?
A smart diffuser covers approximately 40 m² | 100 m³.
Still unclear? We're happy to advise you
How do I place two diffusers in one room?
For optimal results, place the HIDE Smart Diffuser diagonally opposite the first installation.
Not possible? No problem, distribution takes place from anywhere in the room.
Still unclear? We're happy to advise you.
HOW DO I USE THE ROOM FRAGRANCES TAB?
Inserting the room fragrance tablet is simple and easy. Open the lid and place it in the diffuser.
One room fragrance tablet has a runtime of approximately 400 hours. Optimize the usage time by using a schedule .
Still unclear? We're happy to advise you.
WHAT DO YOU NEED TO GET STARTED?
APP
Download the revoltab app on your mobile device
WIFI
Connect the Smart Diffuser to the Wi-Fi
POWER
Connect the Smart Diffuser to the power supply
